Cummins KTA-38 Engine Diesel Generator Set – 850 kW / 1065 kVA, 440 V, 60 Hz – Only 1443 Running Hours
Fleet Automation offers a Cummins K38-series (KTA-38) diesel engine coupled to a Leroy-Somer AC alternator, available as a complete generating set or as engine-only supply. The set was installed as an emergency standby generator , so total running hours are only 1443 .
Engine nameplate details
-
Make / Model: Cummins KTA38-G(N)M (K38 series, V12, 4-stroke, turbocharged & aftercooled)
-
Engine Serial No. (ESN): 33152815
-
CPL: 8138
-
Reference No.: PURK380ML0-11
-
Engine Family: D23 – Displacement: 1542 CID (37.8 liters)
-
Rated Output: 1491 HP @ 1800 RPM (approx. 1112 kW mechanical)
-
Low idle: 575–650 RPM
-
Fuel Pump: 3075664, calibration code BG53
-
Year / Place of Manufacture: October 2002, Cummins Daventry (UK)
-
Running Hours: 1443 only (emergency generator duty)

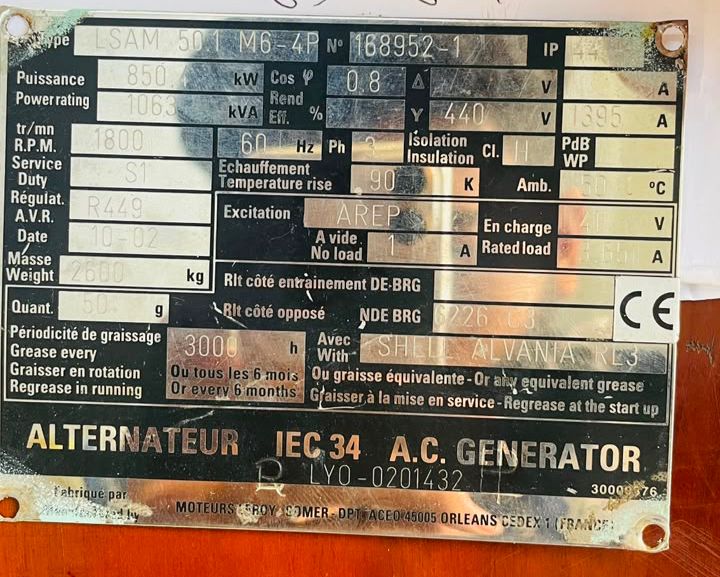

Alternator nameplate details
-
Make: Leroy-Somer (Moteurs Leroy-Somer, Orléans, France)
-
Type: LSAM 50.1 M6-4P – Serial No.: 168952-1
-
Power Rating: 850 kW / 1065 kVA at cos φ 0.8
-
Voltage: 440 V (star connection) – Current: 1395 A
-
Speed / Frequency / Phase: 1800 RPM, 60 Hz, 3-phase
-
Duty: S1 (continuous) – Enclosure: IP 44
-
Insulation Class: H — Temperature rise: 90 K at 50 °C ambient
-
Excitation: AREP, brushless – AVR: Leroy-Somer R449
-
No-load excitation: 1 A — Rated-load excitation: 40 V / 1.65 A
-
NDE bearing: 6226 C3, greased with Shell Alvania RL3 (3000 h / 6-month intervals)
-
Weight: 2600 kg – Date of manufacture: 10-2002
-
IEC 34 compliant, CE marked

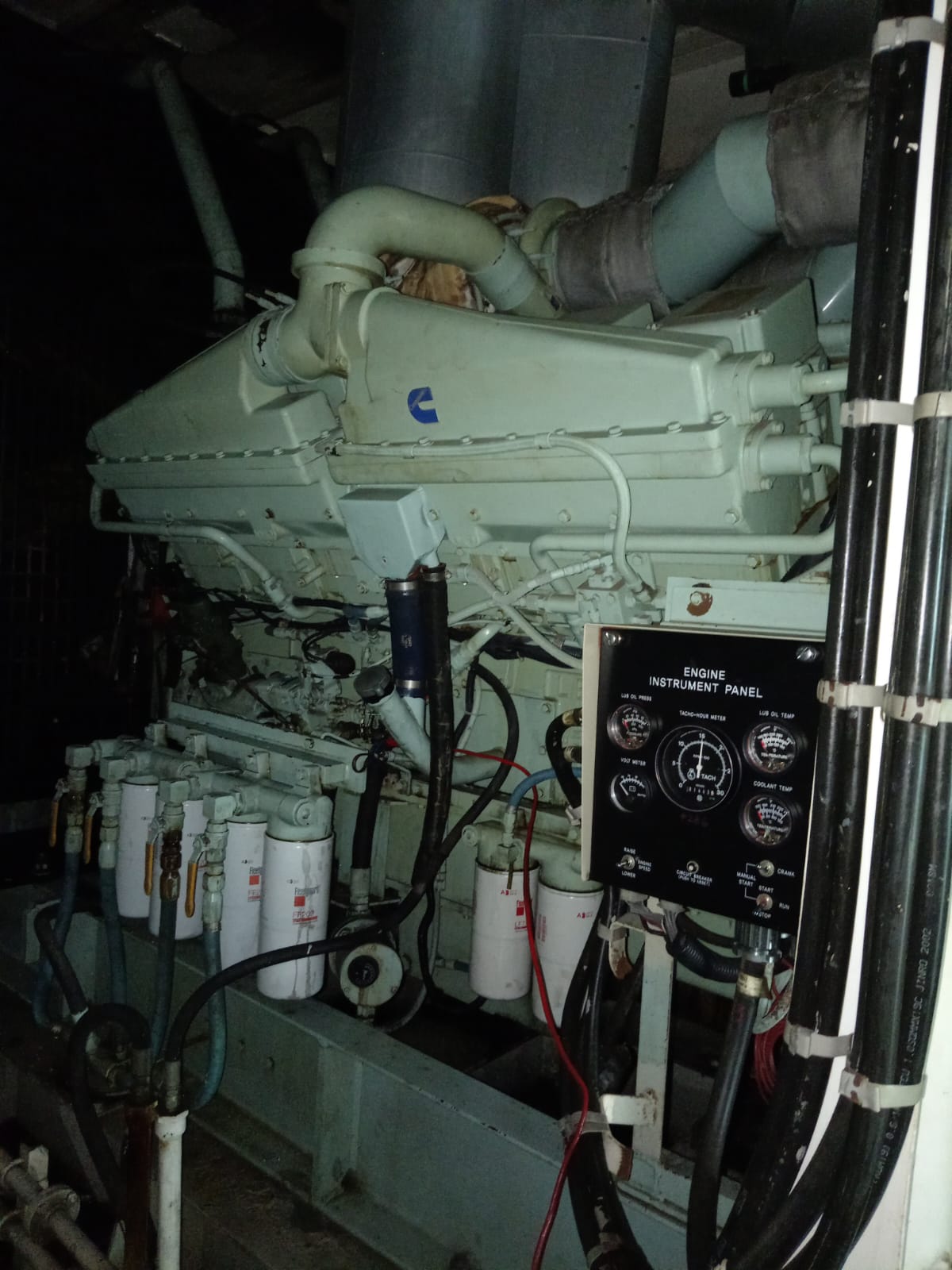

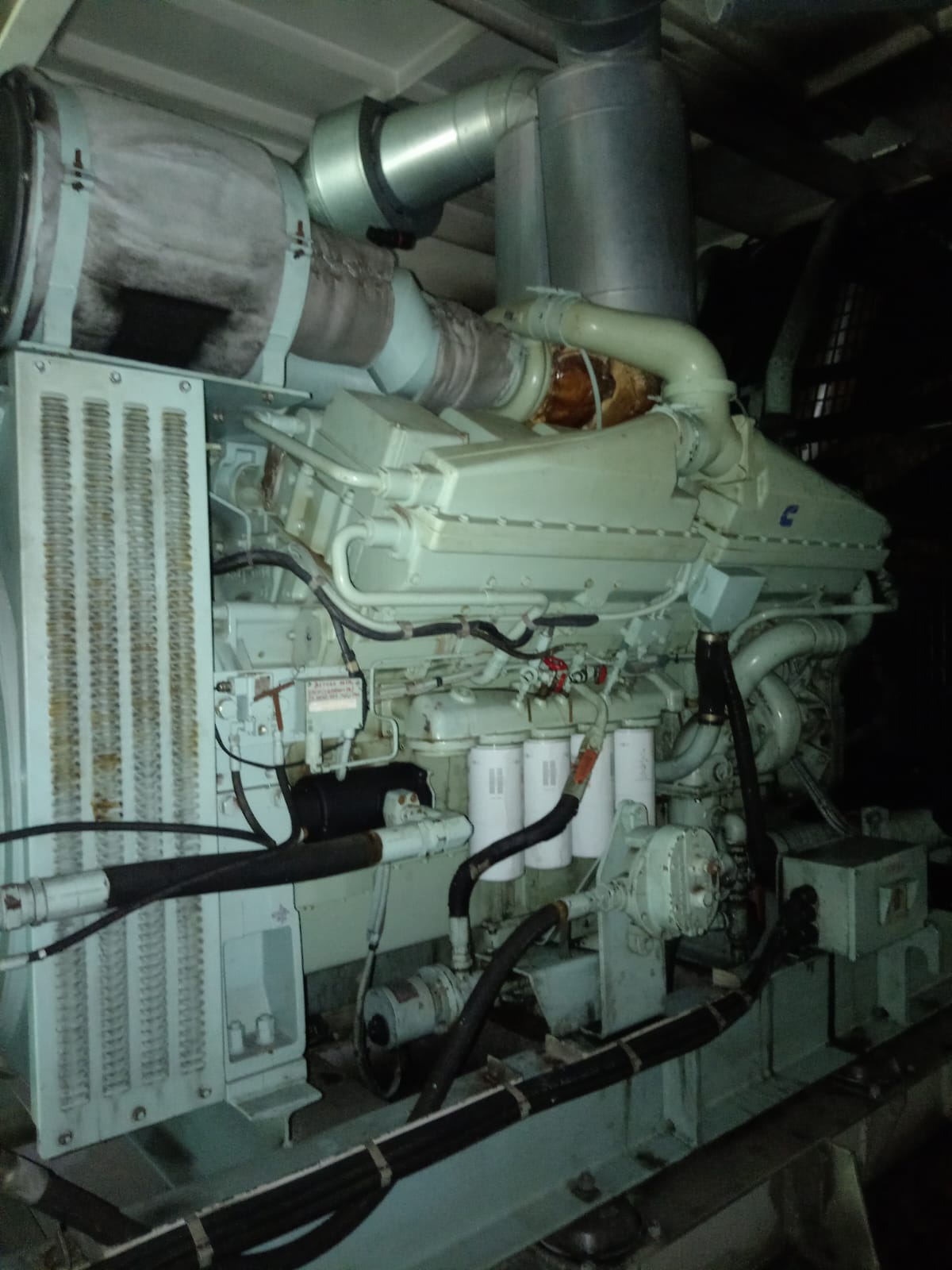

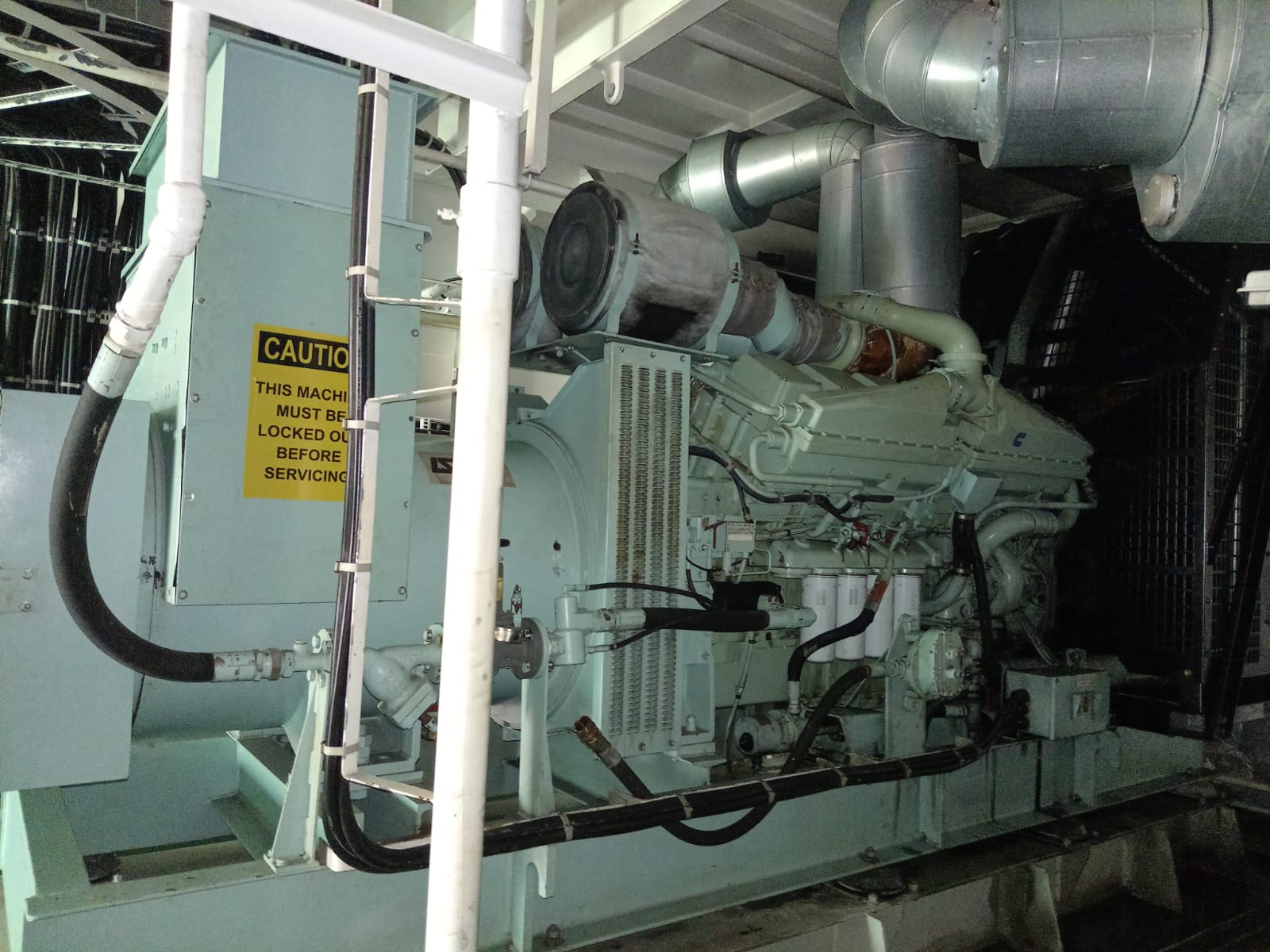

Configuration & Features
-
Radiator-cooled arrangement
-
Engine and alternator coupled via flexible drive plate and SAE flywheel housing (as per build)
-
24 V DC electric starting with battery charging alternator
-
Mechanical governing, fixed-speed generator-drive calibration
-
Complete with turbochargers, aftercooler, fuel pump, filters, exhaust manifolds, oil sump and mounted accessories as photographed
Conditions & supply
-
Used unit, ex-emergency standby service with low running hours
-
Original nameplates intact on both engine and alternator (photos attached)
