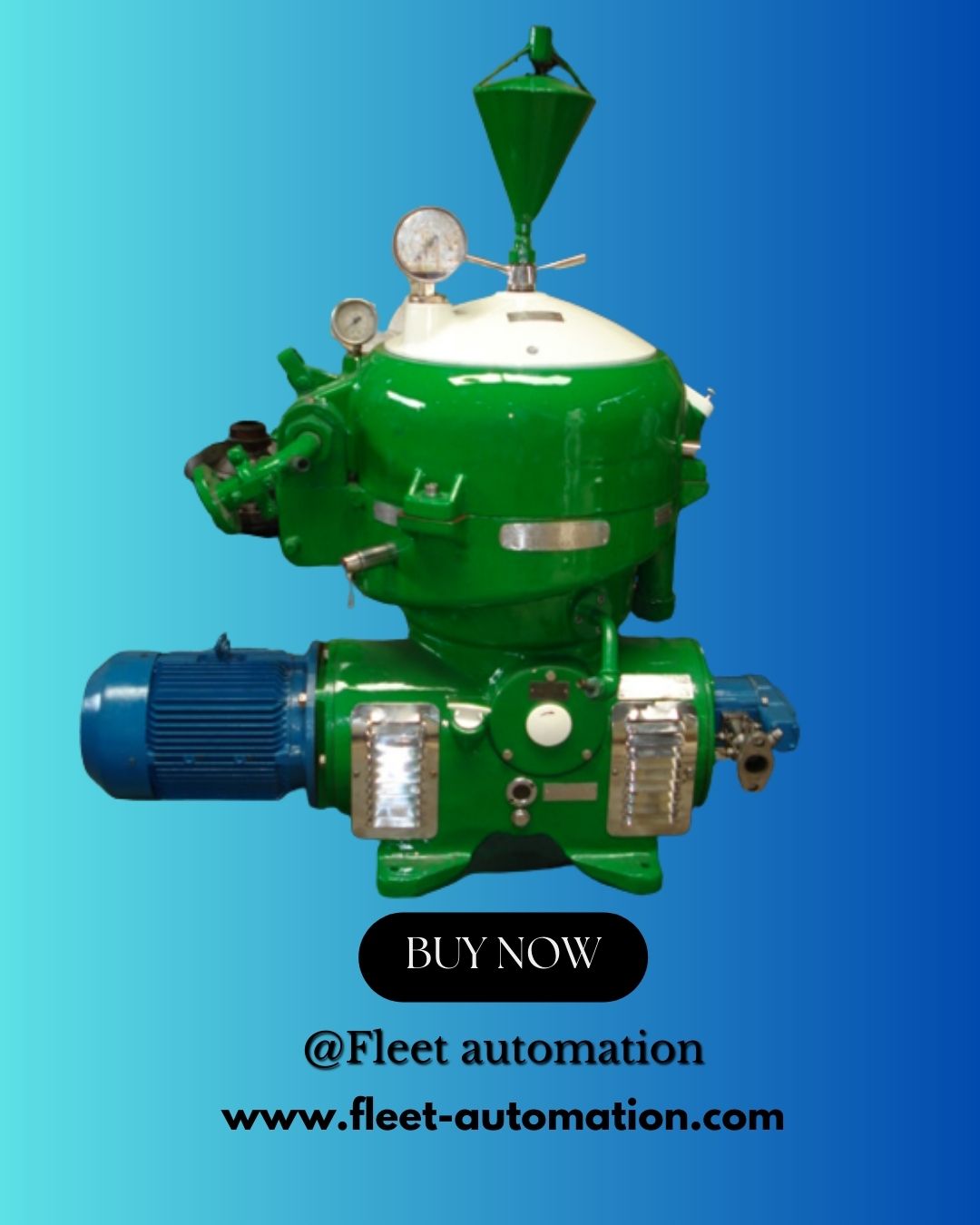

Westfalia OSE20 Separator purifies and clarifies fuel oil, lube oil, and other fluids in marine services by separating solid particles, water, and other impurities from the fluid stream, resulting in a cleaner and more efficient system.

Furthermore, It has a maximum flow rate of 7,000 LPH (liters per hour) and a maximum separating efficiency of 98%. It operates at a maximum temperature of 100°C, a maximum pressure of 6 bar, and a bowl speed of 6,100 RPM (revolutions per minute), and its motor has a power of 22 kW (kilowatts). The separator weighs 2,200 kg and has dimensions of 2,540 x 1,400 x 1,880 mm (length x width x height).

Its main components are the bowl, disc stack, inlet and outlet ports, motor, control system, solids discharge system, water discharge system, and lubrication system, which work together to ensure the efficient separation of impurities. This separator is ideal for marine applications due to its capability of processing a wide range of fluids at high flow rates. Additionally, it features an advanced control system that enables easy operation and monitoring, facilitating optimal performance and maintenance.

Overall, the Westfalia OSE20 Separator offers marine services a reliable and efficient solution for improving the performance and longevity of their fluid systems.

We are not an official distributer of GEA Westfalia Spares.
